Wireless Mobile Access Solution

Business Opportunity

The keyword in the telecommunications world today is “mobility”. More and more consumers want to make calls, access email, chat with friends and enjoy online services not only from the convenience of their homes and offices but also from any location. While wireless technology for data transmission has been around for quite some time, limitations in bandwidth and area coverage have prevented providers from using it for mass deployments in the past. Today, however, innovations like the 801.g WiFi standard and the introduction of Super-G and Extended Range (XR) technologies have made it feasible and cost effective to deploy city-wide wireless access networks and offer revenue-generating mobile wireless access services.

As demand for wireless mobile access is expanding, both traditional and emerging service providers look for ways to capitalize on it. As a result many service providers consider implementing Wireless Mobile Access business model. The essence of such model is the deployment of wireless data transmission infrastructure in areas with high population density and offering of mobile access services. Subscribers for such services can access the Internet from any location with network coverage and can roam between different access points within the network without service interruption.

Business Solution

To address the equipment needs of service providers who want to get into such business, SysMaster offers end-to-end Wireless Mobile Access Solution. The solution features intelligent mobile access, robust access control and powerful billing and CRM capabilities. Utilizing a mesh network infrastructure with roaming among access points and bandwidth optimization, the solution ensures high bandwidth and reliable access for all users located within the network boundaries.

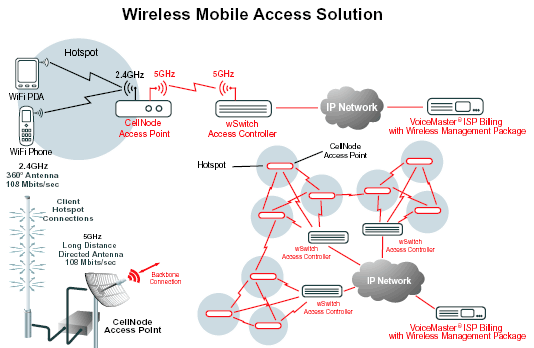

How does the solution work?

User experience

  • Users sign up for service with the mobile wireless access service provider
  • The provider issues an authentic and secure PIN code for them to log in the provider’s network (upon payment)
  • Subscribers preset their user name/password combinations in their wireless devices (cell phones, PDAs, laptops etc.)
  • Subscribers gain access the Internet from any location within the boundaries of the wireless network

Service provider experience

  • CellNode™ receives admission request via 801.g 2.4Ghz band from a wireless device within its physical proximity
  • The CellNode™ transmits the admissions request via 5Ghz uplink to wSwitch Access Controller
  • The wSwitch Access Controller receives the admission request and sends request for authorization to VoiceMaster® ISP Billing server
  • The VoiceMaster® ISP Billing server verifies account privileges, grants/denies device access and starts session billing if necessary (e.g. for business models with per minute user billing)
  • The VoiceMaster® ISP Billing server sets the proper Dynamic Firewall rules in the wSwitch Access Controller and issues an IP address to the wireless device via DHCP protocol
  • The wireless device connects to the Internet via the CellNode™ gateway
  • The CellNode™ manages the wireless device session dynamically and can terminate any session based on time, bandwidth or administrative action

Solution components and requirements

Core elements of SysMaster's Wireless Mobile Access Solution include:

  • VoiceMaster® ISP Billing Platform, a robust and feature rich billing server that allows ISP providers to authenticate and bill their subscribers in wireless roaming environment.
  • wSwitch Access Controller, a wireless network appliance that provides dynamic firewall services, centralized management, provisioning and traffic optimization of WiFi mesh networks
  • CellNode, a unique wireless access device that is designed to operate in WiFi mesh infrastructure with central management and provisioning, and built-in network optimization. The CellNode device supports both 2.4GHz 802.11b/g mode for communication with wireless client devices and 5GHz 802.11a mode for backbone transport.

Interested to learn more about that solution? Call Us today or email us at service@sysmaster.com
