TVLive Mobile Broadcaster - Universal Multicast and Unicast IPTV Solution

Product Overview

Problem: TV Station requires mobile solution for mobile broadcasting to replace their Mobile TV Station. The solution should be portable, battery powered, and provide Standard Definition Video and Audio feed to the central TV Office in digital format.

Solution: SysMaster Corporation offers LiveTV Mobile Broadcaster to accomodate live TV streaming using LiveTV Station, Streaming Server, and LiveTV Studio hardware. The streaming is done in real-time using H264 Video encoding and MP3 audio encoding. The uplink is using 3G or WiFi 802.11n/b/g/a high-capacity mobile interface with 600kpbs uplink data stream.

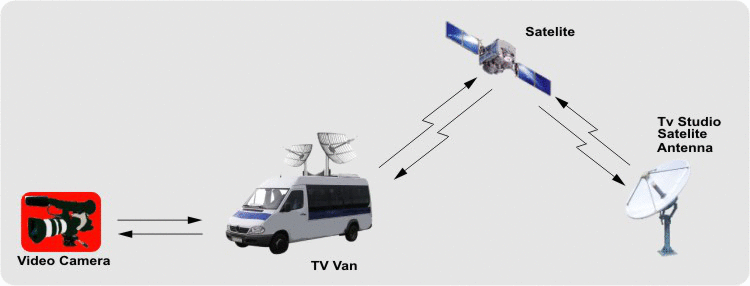

Standard TV Broadcast



TVLive Mobile Broadcast

Feature Comparison

Features	Standard TV Broadcast	TVLive Mobile Broadcast
Satellite Link	Yes	No
WiFi Link	No	Yes
3G Link	No	Yes
Mobility	Low (VAN and Sat Dish)	High (carry-on back-pack)
Accessibility	Low	High
Reliability	High	High
Initial Investment	500,000USD	20,000USD
Service Investment	8,000USD/month	100USD/month
Personnel Investment	20,000USD/month	5,000USD/month
Personnel Required	4 people	1 person

Inexpensive replacement for Mobile TV Station equipment

SysMaster offers a complete Live TV streaming solution for low price that takes advantage of the newest video processing and streaming technology. The company offers a TVLive package that has 3 components and uses 3G/Wi-Fi uplinks for complete mobile operation.

Advanced H264/MP3 encoding that supports D1 digital resolution

The TVLive Station uses built-in hardware H264 Encoder that supports high video quality with low power and bandwidth consumption. The H264 encoder supports Standard Definition video with RCA input that can accept feed from analog cameras and other devices.

TVLive Station optimized hardware design

SysMaster offers optimized hardware design for its TVLive Station hardware. The device is an enhanced laptop with built-in H264 encoder and battery pack that can function in transmit mode for up to 8 hours. The device allows supports 3G USB modem and built-in Wi-Fi modem. The total TVLive Station weight is less than 1 kilogram (2 pounds).

TVLive Studio - advanced digital stream receiver

SysMaster Corporation offers an advanced digital stream received called TVLive Studio. The device is placed into the central office of the TV station and is hooked up to the video and audio equipment using digital HDMI or analog RCA interface.

Advanced 3G/Wi-Fi (802.11a/b/g/n) uplink stream management

SysMaster Corporation offers an advanced TVLive solution that uses 3G or Wi-Fi uplink interfaces with low bandwidth consumption. The usually average traffic for Standard Definition streams is around 600kbps - bandwidth that is commonly supported by most mobile operators. This allows complete mobility and roaming support for mobile TV transmission.

Advanced multi-session streaming server

SysMaster offers an advanced multi-session streaming server that allows one TVLive Station to provide digital stream feed to multiple TVLive Studio devices. The Streaming server supports access control and authentication algorithms to provide professional and fault-tolerant services.

TVLive Mobile Broadcast Specifications:

TVLive Station*

• Intel Dual Atom Laptop 11"
• 512MB RAM
• 4GB Flash
• H264/MP3 Hardware Encoder
• Build in WiFi 802.11b/g/a/n Adapter
• 3G/HSPA High-Capacity Modem **
• High-Capacity Battery

TVLive Streamer

• Dual Core Atom CPU
• 200W Auto-Switching PSU
• 1GB RAM
• 4GB Flash
• 1 PCI Slot
• 6 USB Slots
• 1 VGA Slot
• 1GB Ethernet Port
• 1U Case

TVLive Studio

• Tornado M55 HD Receiver
• 256 MB RAM
• 256 MB Flash
• HDMI Port
• USB Ports
• S-Video Port
• Analog Audio/Video Port
• Remote Control

Technical Specifications ^*

    *    3G Modem
    **  Optional
